This tool allows you to compare networking equipment across various brands such as Ubiquiti Unifi, TP-Link Omada, Ruckus, etc…
| Access Points | ||
| General | ||
| Brand | Ubiquiti | Ubiquiti |
| Product Line | Unifi | Unifi |

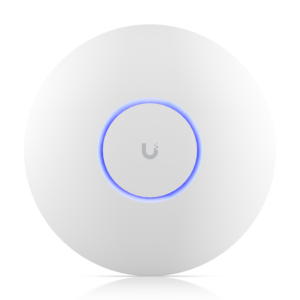

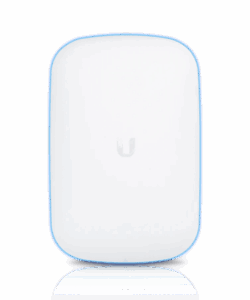

| SKU | UAP-BeaconHD | UAP-AC-Pro |
| MSRP | $129 | $149 |
| WiFi Generation | AC Wave 2 | AC Wave 1 |
| Class | AC2100 | AC1750 |
| 2.4 GHz Radio | ||
| Standard | WiFi 4 | WiFi 4 |
| MIMO / Width | 2x2 / 40 MHz | 3x3 / 40 MHz |
| TX Power | 24.8 dBm | 22 dBm |
| Antenna Gain | 4.5 dBi | 3 dBi |
| Max Data Rate | 300 Mbps | 450 Mbps |
| 5 GHz Radio | ||
| Standard | WiFi 5 | WiFi 5 |
| MIMO / Width | 4x4 / 160 MHz | 3x3 / 80 MHz |
| TX Power | 30 dBm | 22 dBm |
| Antenna Gain | 5 dBi | 3 dBi |
| Max Data Rate | 1733 Mbps | 1300 Mbps |
| Capabilities | ||
| Spatial Streams | 6 | 6 |
| Claimed Coverage | 1,000 ft² | 1,500 ft² |
| Claimed Max Clients | 300+ | 250+ |
| Max BSSID | 8 per radio | 8 per radio |
| Physical | ||
| Chipset | MediaTek | Qualcomm QCA9560 |
| Ports | None | (2) 1 Gbps |
| PoE In | - | PoE 48V |
| Max Consumption | 11.5W | 9W |
| Mounting Location | AC Electrical | Ceiling / Wall |
| Environment | Indoor | Indoor |
| Dimensions Imperial | 6.7 x 4.4 x 1.3" | 7.7 x 1.4" |
| Dimensions Metric | 170 x 112 x 32 mm | 197 x 35 mm |
