This tool allows you to compare networking equipment across various brands such as Ubiquiti Unifi, TP-Link Omada, Ruckus, etc…
| Access Points | ||
| General | ||
| Brand | Ubiquiti | Ubiquiti |
| Product Line | Unifi | Unifi |

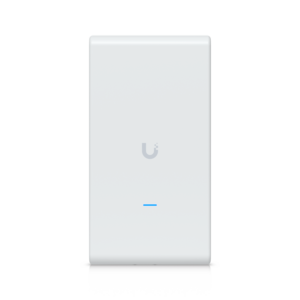

| SKU | E7 | U6-Mesh-Pro |
| MSRP | $499 | $199 |
| WiFi Generation | WiFi 7 | WiFi 6 |
| Class | BE21000 | AX3000 |
| 2.4 GHz Radio | ||
| Standard | WiFi 7 | WiFi 6 |
| MIMO / Width | 2x2 / 40 MHz | 2x2 / 40 MHz |
| TX Power | 23 dBm | 22 dBm |
| Antenna Gain | 5 dBi | 8 dBi |
| Max Data Rate | 688 Mbps | 574 Mbps |
| 5 GHz Radio | ||
| Standard | WiFi 7 | WiFi 6 |
| MIMO / Width | 4x4 / 240 MHz | 2x2 / 160 MHz |
| TX Power | 30 dBm | 27 dBm |
| Antenna Gain | 6 dBi | 8 dBi |
| Max Data Rate | 8648 Mbps | 2400 Mbps |
| 6 GHz Radio | ||
| Standard | WiFi 7 | - |
| MIMO / Width | 4x4 / 320 MHz | - |
| TX Power | 24 dBm | - |
| Antenna Gain | 6 dBi | - |
| Max Data Rate | 11529 Mbps | - |
| Capabilities | ||
| Spatial Streams | 10 | 4 |
| Claimed Coverage | 2,000 ft² | 2,000 ft² |
| Claimed Max Clients | 1,000+ | 250+ |
| Max BSSID | 8 per radio | 8 per radio |
| Spectral Analysis Radio | Yes | - |
| Physical | ||
| Chipset | Qualcomm | Qualcomm |
| Ports |
(1) 10 Gbps (1) 1 Gbps |
(2) 1 Gbps |
| PoE In | PoE++ 48V | PoE 48V |
| Max Consumption | 43W | 9W |
| Mounting Location | Ceiling | Pole / Wall |
| Environment | Indoor | Indoor / Outdoor |
| IP Rating | - | IPX6 |
| Dimensions Imperial | 9.8 x 9.8 x 1.7" | 13.5 x 7.1 x 2.4" |
| Dimensions Metric | 250 x 250 x 44 mm | 343 x 181 x 60 mm |
