This tool allows you to compare networking equipment across various brands such as Ubiquiti Unifi, TP-Link Omada, Ruckus, etc…
| Access Points | ||
| General | ||
| Brand | Ubiquiti | Ubiquiti |
| Product Line | Unifi | Unifi |

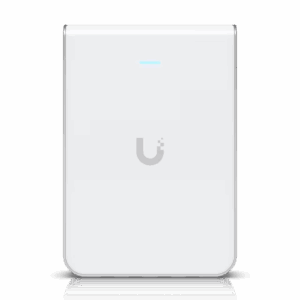

| SKU | U6-IW | U6-Plus |
| MSRP | $179 | $129 |
| WiFi Generation | WiFi 6 | WiFi 6 |
| Class | AX5400 | AX3000 |
| 2.4 GHz Radio | ||
| Standard | WiFi 6 | WiFi 6 |
| MIMO / Width | 2x2 / 40 MHz | 2x2 / 40 MHz |
| TX Power | 22 dBm | 23 dBm |
| Antenna Gain | 5 dBi | 3 dBi |
| Max Data Rate | 574 Mbps | 574 Mbps |
| 5 GHz Radio | ||
| Standard | WiFi 6 | WiFi 6 |
| MIMO / Width | 4x4 / 160 MHz | 2x2 / 160 MHz |
| TX Power | 26 dBm | 23 dBm |
| Antenna Gain | 5.9 dBi | 5.4 dBi |
| Max Data Rate | 4800 Mbps | 2400 Mbps |
| Capabilities | ||
| Spatial Streams | 6 | 4 |
| Claimed Coverage | 1,250 ft² | 1,500 ft² |
| Claimed Max Clients | 300+ | 300+ |
| Max BSSID | 8 per radio | 8 per radio |
| Bluetooth | Yes | - |
| Physical | ||
| Chipset | Qualcomm | MediaTek |
| Ports |
(1) 1 Gbps (4) 1 Gbps Out |
(1) 1 Gbps |
| PoE In | PoE / PoE+ 48V | PoE 48V |
| PoE Out | (1) PoE | - |
| Max Consumption | 13W + PoE Out | 9W |
| Mounting Location | Single Wall Box | Ceiling / Wall |
| Environment | Indoor | Indoor |
| Dimensions Imperial | 5.5 x 3.8 x 1.3" | 6.3 x 1.3" |
| Dimensions Metric | 140 x 96 x 33 mm | 160 x 33 mm |
