This tool allows you to compare networking equipment across various brands such as Ubiquiti Unifi, TP-Link Omada, Ruckus, etc…
| Access Points | ||
| General | ||
| Brand | Ubiquiti | Ubiquiti |
| Product Line | Unifi | Unifi |

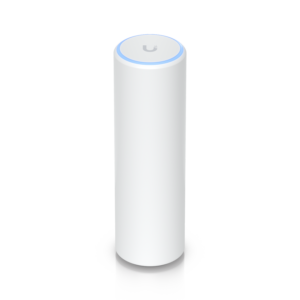

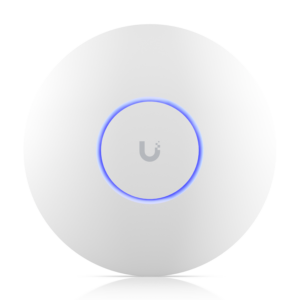

| SKU | U6-LR | UAP-FlexHD |
| MSRP | $179 | $179 |
| WiFi Generation | WiFi 6 | AC Wave 2 |
| Class | AX3000 | AC2100 |
| 2.4 GHz Radio | ||
| Standard | WiFi 4 | WiFi 4 |
| MIMO / Width | 4x4 / 40 MHz | 2x2 / 40 MHz |
| TX Power | 26 dBm | 23 dBm |
| Antenna Gain | 4 dBi | 1.6 dBi |
| Max Data Rate | 600 Mbps | 300 Mbps |
| 5 GHz Radio | ||
| Standard | WiFi 6 | WiFi 5 |
| MIMO / Width | 4x4 / 160 MHz | 4x4 / 80 MHz |
| TX Power | 26 dBm | 26 dBm |
| Antenna Gain | 5.5 dBi | 4 dBi |
| Max Data Rate | 2400 Mbps | 1733 Mbps |
| Capabilities | ||
| Spatial Streams | 8 | 6 |
| Claimed Coverage | 2,000 ft² | 1,250 ft² |
| Claimed Max Clients | 350+ | 200+ |
| Max BSSID | 8 per radio | 8 per radio |
| Bluetooth | Yes | - |
| Physical | ||
| Chipset | MediaTek | MediaTek |
| Ports | (1) 1 Gbps | (1) 1 Gbps |
| PoE In | PoE+ 48V | PoE 48V |
| Max Consumption | 16.5W | 10.5W |
| Mounting Location | Ceiling / Wall | Pole / Table / Wall |
| Environment | Indoor | Indoor / Outdoor |
| IP Rating | - | IPX5 |
| Dimensions Imperial | 8.7 x 1.9" | 1.9 x 6.3" |
| Dimensions Metric | 220 x 48 mm | 49 x 160 mm |
